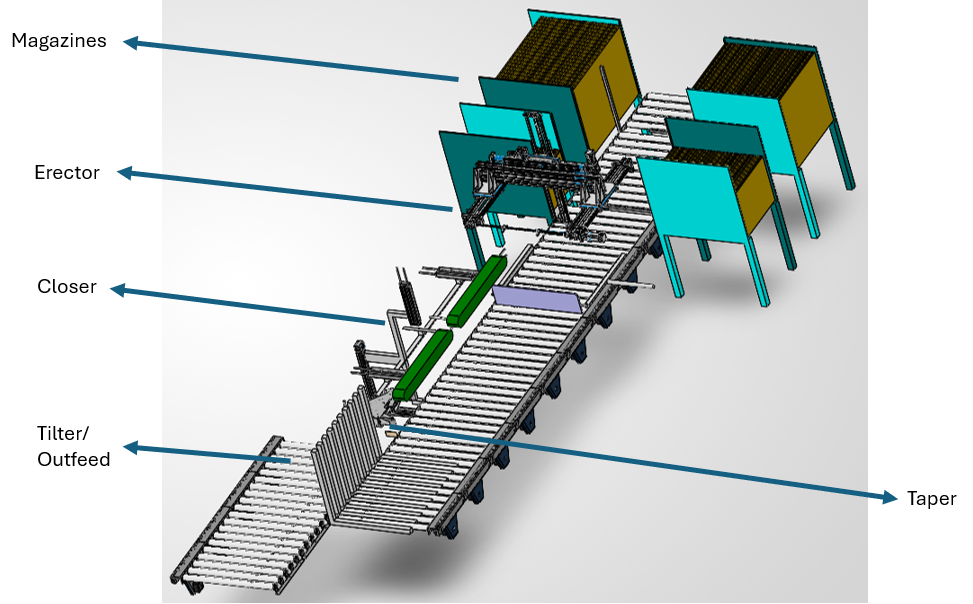

Multi-SKU Automatic Case Erector for Flexible Carton Handling
Automatic multi-SKU case erector with modular architecture for environments requiring flexible
format handling,
reliable operation and scalable machine expansion as production needs evolve.
Designed for distribution centers and packaging environments requiring flexible carton handling
and automatic multi-size case erection.
In concept phase
Early adopter partners are welcome to collaborate during development and validation.
Interested in shaping the next generation of flexible case erecting?
Contact us to discuss early adopter opportunities and project requirements.
Specifications and features
Performance
- Throughput: 10 cases per minute, depending on case size and variety
- Automatic adjustment according to case size
- Modular machine design
Operations
- Case size selection through HMI, recipe or 3rd party integration
- ERP integration on request
- 3rd party machine integration on request
- Outfeed customization on request
- Designed for modular upgrades and expandable magazine configurations
Case formats
- Maximum erected case size: 650 × 650 × 650 mm
- Minimum erected case size: 250 × 200 × 150 mm
- Maximum case weight: up to 3.5 kg
- Supported carton types: to be investigated and tested
Magazine System
- Manual screw-adjustable magazines, optional automatic adjustment
- Number of magazines customizable
- Capacity: up to 150 blanks per magazine
- Optional extended magazine capacity possible
- On-the-fly refilling supported during operation
Sealing
- Bottom taping included
Machine Dimensions
- Footprint (without outfeed conveyor): 6.5 m × 2.8 m
Commercial
-
Estimated budget level: 160 000 – 190 000 €
-
(Concept phase pricing, subject to detailed engineering and final
configuration.)
Applications
- Distribution centers handling multiple carton sizes
- High-mix packaging environments
- Large-format carton erection
- Flexible packaging lines with varying case formats
Future
-
The modular architecture allows the machine to evolve alongside production needs.
Planned future options include:
- Top taping capability
- Gluing systems
- Bag inserter modules
- Robotic palletizing integration
- Other features depending on customer requests
This machine is currently in concept phase. Early adopter partners are welcome to collaborate during development and validation. Configuration and magazine layouts can be adapted based on application requirements.
